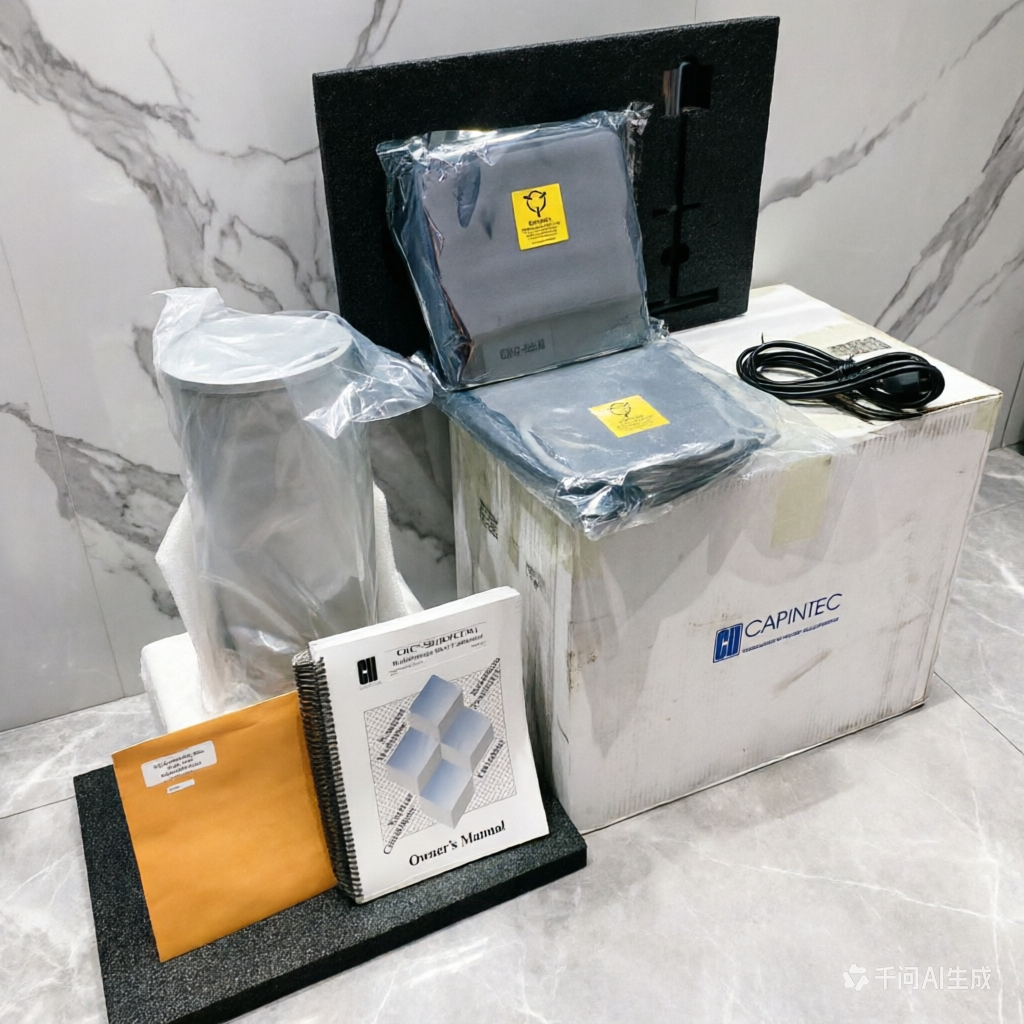

Remote Operation Dose Calibrator for Nuclear Medicine Hot Cells

Remote Operation Dose Calibrator for Nuclear Medicine Hot Cells

Product Introduction

The Remote Operation Dose Calibrator represents a complete rethinking of how dose measurement should work in a hot cell environment. Traditional instruments place the user in direct line-of-sight with the radioactive sample — even when the detector is inside the hot cell, the user still faces the cell to read the display. This instrument separates not only the detector but also all controls, allowing true remote operation. The detector installs inside the hot cell, while the control unit — including power switch, measurement button, nuclide selection, and display — sits outside, typically on a desktop or mounted on the hot cell face. An optional wireless footswitch provides an additional remote control option, allowing the technician to initiate measurements without taking hands off manipulators.

Application Range

This dose calibrator is designed for any nuclear medicine department that prioritizes radiation safety and workflow efficiency. Primary applications include measuring Tc-99m generator eluates, dispensing F-18 doses for PET/CT, quantifying I-131 capsules for thyroid therapy, verifying Lu-177 doses for PRRT, and performing quality control measurements such as constancy checks and linearity tests. The remote operation capability is particularly valuable for high-volume radiopharmacies where technicians spend multiple hours per day in front of hot cells. By allowing all operations from outside the immediate hot cell area, the instrument significantly reduces cumulative occupational exposure. The remote control also benefits training environments where instructors can demonstrate measurement procedures without crowding the hot cell, and it facilitates quality assurance workflows where the same instrument is used by multiple operators throughout the day.

Performance and Benefits

The Remote Operation Dose Calibrator delivers measurement accuracy of ±5% with reproducibility better than ±2%. The ionization chamber is constructed of corrosion-resistant materials and sealed against contamination, ensuring reliable operation for years inside a hot cell environment. The remote control unit features a 5-inch color display showing the current activity, selected nuclide, measurement range, and stability indicator. All instrument functions — nuclide selection, geometry selection (vial/syringe/capsule), range selection (auto or manual), background subtraction, and zero adjustment — are accessible from the external control panel. The footswitch option allows hands-free measurement initiation, which is particularly valuable when manipulating hot cell contents with master-slave manipulators. The instrument includes a comprehensive nuclide library with calibration factors for 25+ medical isotopes, including Tc-99m, F-18, I-131, I-123, Lu-177, Ga-67, Ga-68, Y-90, Ac-225, and others. For each nuclide, the user can select from standard geometries, and the instrument automatically applies the appropriate correction factor. The auto-ranging function covers activities from 0.1 μCi to 10 Ci, eliminating manual range selection and preventing overflow errors. The response time is typically 3–5 seconds, with an audible completion alert to notify the user when the reading is stable. The data logging system stores up to 1,000 measurements with complete metadata, and the USB port supports export to spreadsheets or laboratory information systems. An optional thermal printer produces hardcopy records for each measurement, suitable for patient charts or regulatory files. For nuclear medicine departments, the safety benefits are substantial: by eliminating the need to approach the hot cell for routine operations, the remote control unit reduces whole-body exposure by an estimated 60–80% compared to standard dose calibrators. The ergonomic benefits are equally important: technicians can work from a comfortable seating position with the display at eye level, reducing fatigue during long preparation sessions. From a quality perspective, the remote operation reduces measurement variability because the technician can focus on proper sample positioning without stretching or twisting to see the display. The combination of safety, ergonomics, and accuracy makes the Remote Operation Dose Calibrator an excellent choice for departments committed to both staff well-being and measurement excellence.
